Posted: Tue Mar 26, 2024 11:03 am Post subject: Re: Which Oil Pressure Switch?

I used the XH-M609 for a low voltage shutoff and posted about it here with directions:

http://forums.matronics.com/viewtopic.php?t=16776629&postdays=0&postorder=asc&start=20

I believe that the XH-M609 can also detect high voltage, but am not sure.

- The Matronics AeroElectric-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?AeroElectric-List

_________________
Joe Gores

Mudfly

Joined: 04 Feb 2012
Posts: 39

Posted: Tue Mar 26, 2024 11:28 am Post subject: Re: Voltage Controlled Switch

[quote="user9253"]eBay item number:364742288098 might be the device that you are looking for.

Or maybe this one from Amazon:

https://www.amazon.com/XH-M609-Digital-Disconnect-Discharge-Protection/dp/B07WRZSJ5M

Instructions written in Chinlish:

https://www.robotics.org.za/XH-M609[/quote]



Interesting Joe.

Looks like the XH-M609 may work.   Should I mount it beside my fire extinguisher?  Joking..but seriously, for a unit like that would it be

unlikely to cause a major issue if it went into meltdown mode?

Thanks, Shawn

- The Matronics AeroElectric-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?AeroElectric-List

Mudfly

Joined: 04 Feb 2012
Posts: 39

Posted: Tue Mar 26, 2024 12:57 pm Post subject: Re: Which Oil Pressure Switch?

Thanks again gentlemen for the suggestions.   As It turns out , after

consulting the folks at Garmin,  it looks like I should be able to get 12v

to my Hobbs meter from the GEA24.   Pin 9 on connector J243 is labeled

"RPM XDCR+12v -OUT".

Shawn



**"UPDATE"  After further consultation with Garmin, the above information

is not correct.  Pin 9 on the GEA 24 will output 12v as soon as the

unit is powered.   Not once the the engine is running and RPM is

active as stated above.**

- The Matronics AeroElectric-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?AeroElectric-List

nuckolls.bob(at)aeroelect
Guest

Posted: Fri Mar 29, 2024 8:16 pm Post subject: Which Oil Pressure Switch?

At 10:32 AM 3/26/2024, you wrote:

  	  Quote:
		  I have a battery charger that senses vibration caused when the engine is started, and uses that as a trigger. I wouldn't have any idea how to procure or implement a vibration sensor as a trigger for your Hobbs, but I'll bet some of the guys on this list do.


   What's the alternator in your system?

   PM dynamo perhaps?







   Bob . . .



                    ////

                   (o o)

    ===========o00o=(_)=o00o=========

    < Go ahead, make my day . . .   >

    < show me where I'm wrong.      >

    =================================



    In the interest of creative evolution

    for the-best-we-know-how-to-do based

    on physics and repeatable experiment.

- The Matronics AeroElectric-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?AeroElectric-List

user9253

Joined: 28 Mar 2008
Posts: 1930
Location: Riley TWP Michigan

Posted: Sun Apr 07, 2024 7:27 am Post subject: Re: Which Oil Pressure Switch?

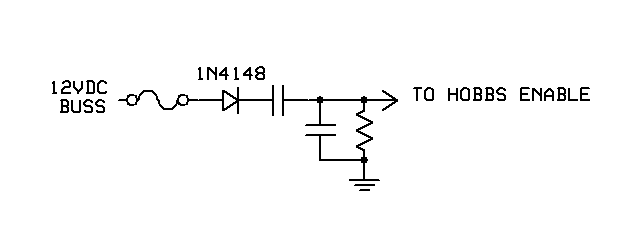

I happened across this circuit stored on my hard drive.  Can not remember who
